- Fence PVC Coating Line

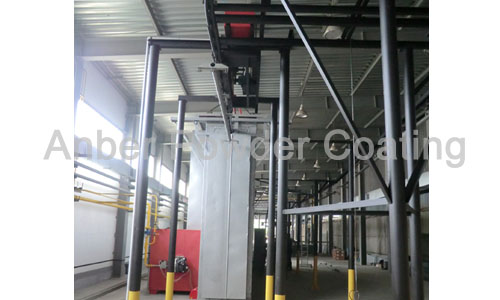

View form the end of curing furnace

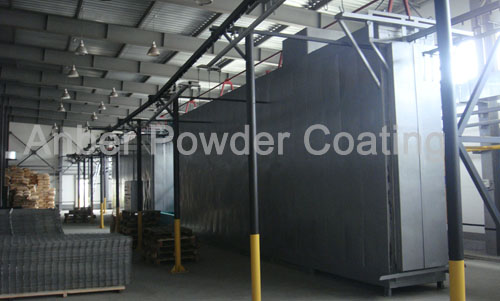

Whole view of fluidized bed powder coating line

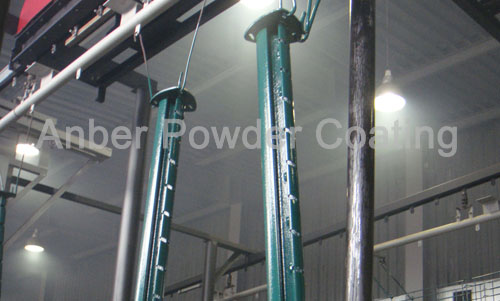

Fence post coating line

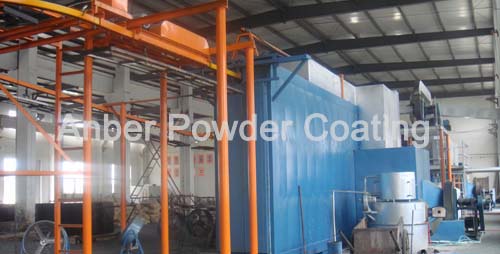

Mesh fence powder coating line

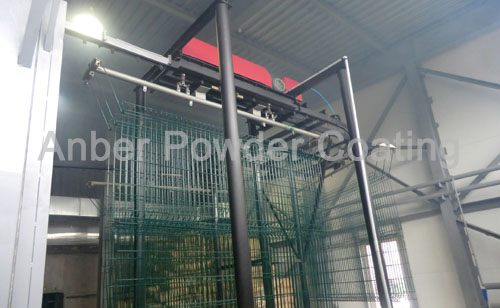

Powder coated mesh fences after curing treatment
- 01. Fence pvc coating equipment
- This Powder Coating Line is used to provide an anti-corrosive surface treatment for mesh fence, wire mesh fence, perforated metal mesh, mesh sheet, expanded metal mesh fence, fence sheet, fence mesh, isolated gate and matched posts. As one kind of safety security, the finished products are great to be fencing for highway, railway, airport and so on.
Main technical parameters:
(1) Max. size of mesh fence: 4000mm long * 2500mm wide
(2) Coating speed: 40~60 sheets per hour
(3) Power consumption: installed capacity 60kw, average power 50kw
(4) Oil consumption: 2200-3000m3/24h
(5) Water consumption: 0.6 -1.2 m3/h (circulating water)
(6) Plant request size(L*W*H): ≥ 50000mm *14000mm * 5000mm
Process flow:
Manual feeding - Pre-heating - Auto powder immersion - Curing - Coated workpiece cooling - Manual discharging - Manual shaping correction - Quality control - Final package
Composition of a complete coating line:
(1) Auto eletrical pre-heating & curing furnace;
(2) Auto coating powder up-and-down device, vibration generator, fluidized bed;
(3) Hanging delivery system, special hanger for workpiece;
(4) Power supply control equipment, auto program control.

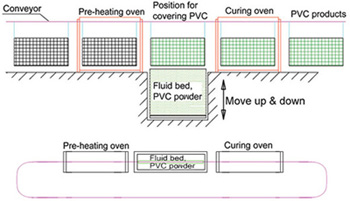

- 02. Layout of fence pvc coating line

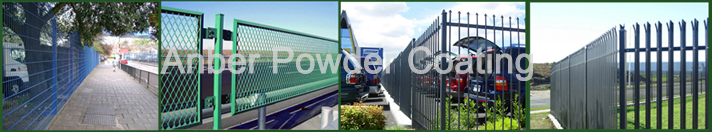

- 03. Products (pvc coated fence plate)
