• 25T High Speed Punching Press

High speed punching press

High speed punching press

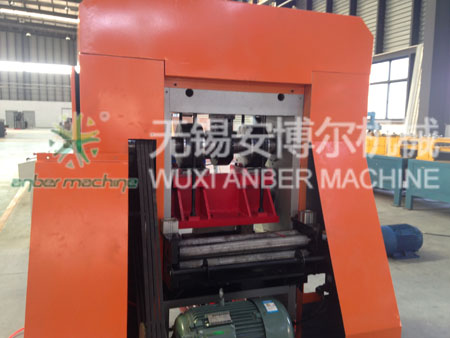

Punching machine

Punching machine

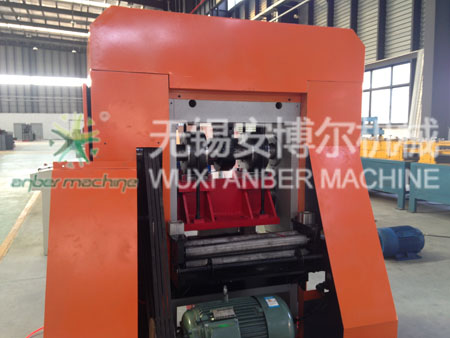

High speed punching machine

High speed punching machine

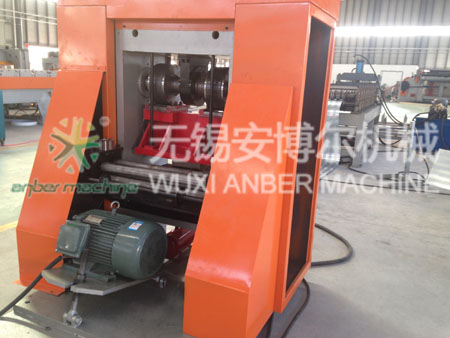

25T high speed punching press

25T high speed punching press

  • 01. Machine characteristic
  • 1. Higher capacity to produce the mesh
    2. Easy operation, save the labor cost and maintain cost.
  • 02. Machine application
  • This high speed punching press can be used to produce angle bead, plaster stop bead, movement bead, architrave bead, etc which the raw material is small. The material width can use 300mm 0.3-1.2mm thickness cold rolled steel.
  • 03. Main parameters
  • SN
    Item
    Unit
    Technical
    1
    Model
    ABE-GS-25/700
    2
    Pressure
    KN
    250
    3
    Material thickness
    mm
    MAX. 1.2MM GI
    4
    Mesh width
    mm
    （≤700）
    5
    Punching speed
    strokes/min
    500
    6
    Slide stroke
    mm
    20
    7
    Max. Die height
    mm
    200
    8
    Die height adjustment
    mm
    Max. 50MM
    9
    Working table size
    mm
    500×700
    10
    Motor
    Power
    KW
    15-22
    Rotate speed
    R/min
    1440
    11
    Overall size (L×W×H)
    mm
    1300×1300×1900
    12
    Total weight
    kg
    1700
    13
    Remark
    Above parameter can be designed according to customer’s requirement
