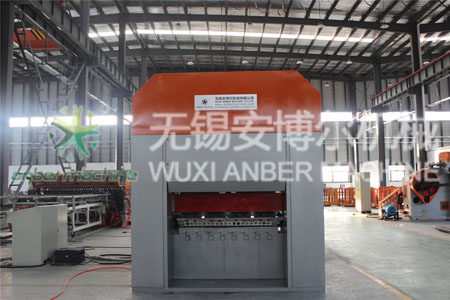

High speed expanded metal mesh machine

High speed expanded metal mesh machine

High speed metal expander

High speed metal expander

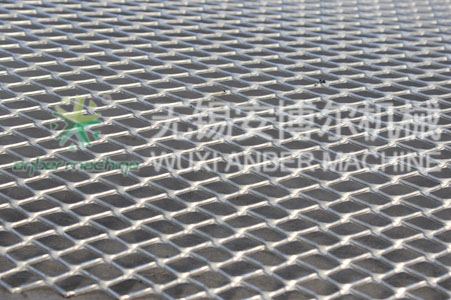

Expanded metal mesh

Expanded metal mesh

  • 01. General description
  • ANBER high speed expanded mesh machine, it is high speed and CE certificated.
  • 02. Detailed description
  • Expend mesh machine is a kind of building product use hot rolled board punching forming. It has the characteristic of light weight, high strength. It main use for the protective equipment of building products, road or railway
    Application: Industry and civil architecture, road, railway.
    Advantage of the application:
    1. More faster construction speed, less insurance expenses and labor.
    2. To improve the project’s quality reduce the labor intensity of install the expanded mesh, the protective screening of the road and railway.
    The product’s application and the requests of the material: The expanded mesh produced by this production line is mainly used for constructional engineering. Please choose cold rolled plate with the thickness of 0.5-2mm, the width 1250mm.
  • 03. The composition and effect of the equipment
  • Punching equipment include punching machine, step feeding mechanisms and tools. Step feeding mechanisms sending the sheet material to the punching machine with a certain beat and specific length; press machine and tools use for making the hot rolled sheet punch to mesh sheet.
  • 04. Main parameters
  • SN
    Item
    Unit
    Technical
    1
    Model
    ABE-GS-60/1250
    2
    Pressure
    KN
    600
    3
    Material thickness
    mm
    2-4mm, according to the mesh opening
    4
    Mesh width
    mm
    （≤1250）
    5
    Punching speed
    strokes/min
    500
    6
    Slide stroke
    mm
    40
    7
    Max. Die height
    mm
    90
    8
    Die height adjustment
    mm
    10
    9
    Working table size
    mm
    1300×1500
    10
    Motor
    Power
    KW
    22
    Rotate speed
    R/min
    1440
    11
    Overall size (L×W×H)
    mm
    2600×2500×2800
    12
    Total weight
    kg
    8187
    13
    Remark
    Above parameter can be designed according to customer’s requirement
