5M Chain link fence machine


Introduction of chain link fence machine

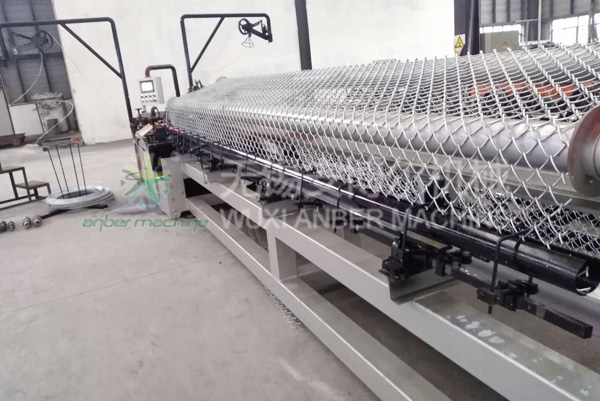

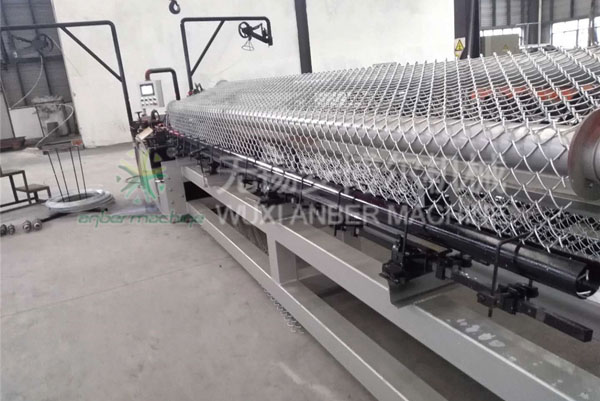

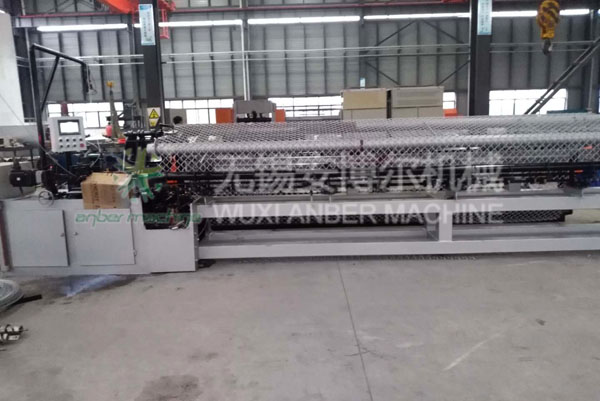

Chain link machine for manufacturing chain link fences of different sizes. The wire is de-coil from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
The chain link is automatically wound to form rolls when the desired length is manufactured.
The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
One side or both sides of the end of net hole is twisted or with burr in edge.
Use compacting machine to make it into rolls.
勾花网机

勾花网机

全自动勾花网机

全自动勾花网机

2M 勾花网机

2M 勾花网机


Main parameter:

Mesh width
5m
Diameter of wire
1.8-5 mm
(depend on the mesh size)
Tensile strength
300-500N/M2
Speed of the axle of shaped knife
650-800 rpm (variable speed)
Width of net
2, 3, 4, 5m
Motor
Main motor
5.5kw, Delta servo motor
Cut motor
2.2kw* 2sets
Border motor
1.5kw* 2 sets, Simens
Recoil motor
0.75kw
Frame
140*140*6 square tube
Cross bead
Seamless tube 127*5.5
Max. Output
90-120m2/h for 70*70mm
Suitable wire to the machine
Galvanized wire, drawn wire, steel wire, PVC wire
Weight of equipment
4200 kg
Main weaving size
7700*1430*1800 mm
Main recoiling size
Reference table of corresponding wire diameter

Width of net hole
30
40
50
60
70
80
Wire diameter
2.0-3.5
2.2-3.5
2.2-3.5
2.5-4.0
2.5-4.0
2.5-4..0
Electric components:


PLC: Delta or Simens
Clutch: YAN-CLUTCH from Taiwan
Switch: Schneider
Frequency: Delta
Touch screen: Delta
Servo motor: Delta

The finished products (chain link fence) :
Chain link fence
Chain link fence
Chain link fence
Chain link fence
Galvanized Chain link fence
PVC Coated Chain link fence
