• 3m Chain Link Fence Making Machine

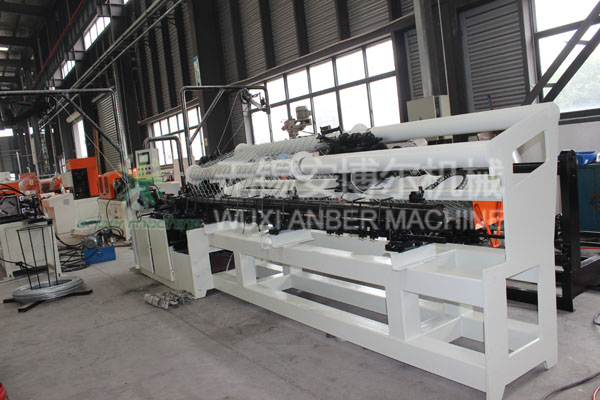

3m Chain link fence making machine

3m Chain link fence making machine

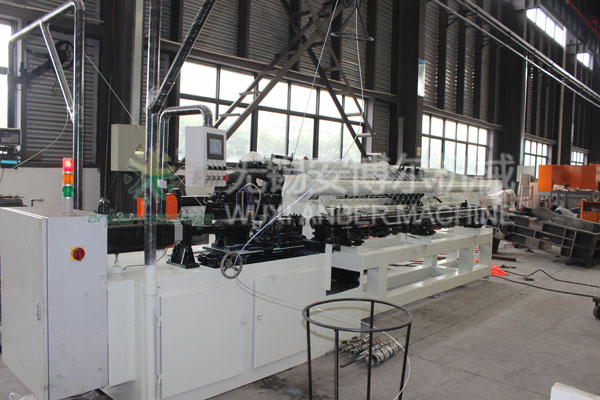

Chainlink fence machine

Chainlink fence machine

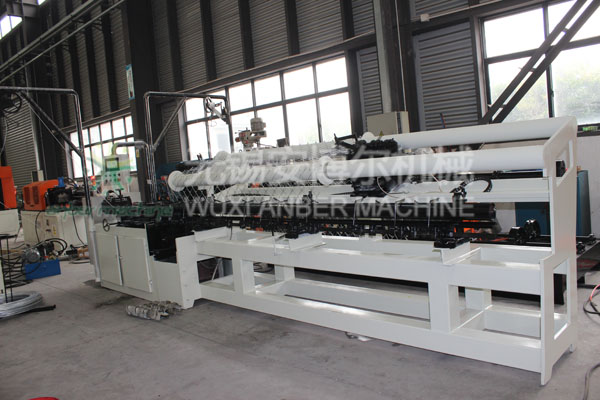

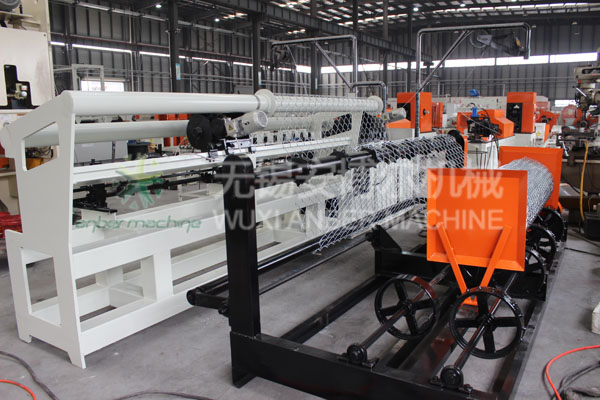

Chain link fence machine

Chain link fence machine

Chain link fence making machine

Chain link fence making machine

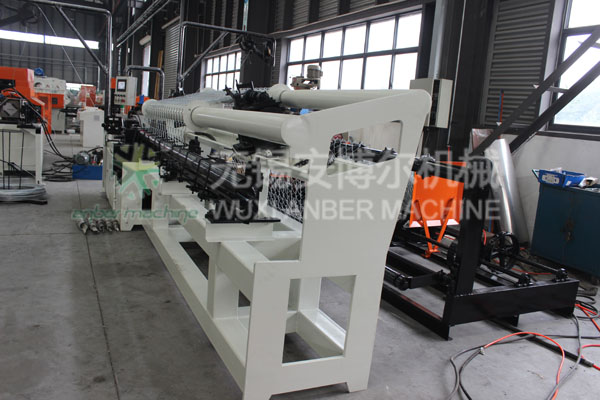

Automatic chain link fence machine

Automatic chain link fence machine

  • 01. Introduction of chain link fence machine
  • Chain link machine for manufacturing chain link fences of different sizes. The wire is decoil from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
    The chain link is automatically wound to form rolls when the desired length is manufactured.
    The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
    One side or both sides of the end of net hole is twisted or with burr in edge.
    Use compacting machine to make it into rolls.
  • 02. Main parameter
  • Mesh width
    3m
    Diameter of wire
    1.8-5 mm
    (depend on the mesh size)
    Tensile strength
    300-500N/M2
    Speed of the axle of shaped knife
    650-800 rpm (variable speed)
    Width of net
    2, 3, 4, 5m
    Frame
    140*140*6 square tube
    Max. Output
    90-120m2/h for 70*70mm
    Suitable wire to the machine
    Galvanized wire, drawn wire, steel wire, PVC wire
    Weight of equipment
    4500 kg
    Main weaving size
    5700*1050*1560 mm
    Main recoiling size
    3770×1260×1170mm
  • 03. Reference table of corresponding wire diameter
  • Width of net hole
    30
    40
    50
    60
    70
    80
    Wire diameter
    2.0-3.5
    2.2-3.5
    2.2-3.5
    2.5-4.0
    2.5-4.0
    2.5-4..0
  • 05. The finished products (chain link fence)
  • Chain link fence
    Chain link fence
    Chain link fence
    Chain link fence
    Galvanized Chain link fence
    PVC Coated Chain link fence
