100 square cage welding machine


Introduction of 100 square cage welding machine:

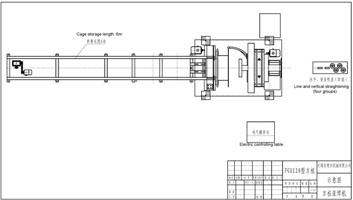

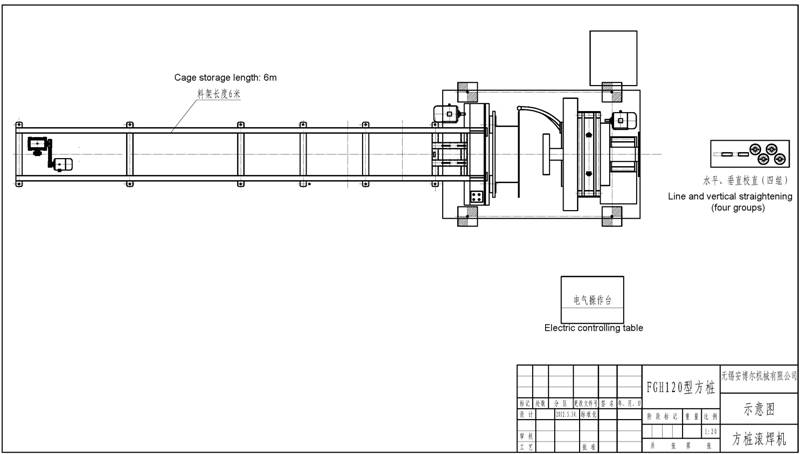

square cage welding machine

square cage welding machine

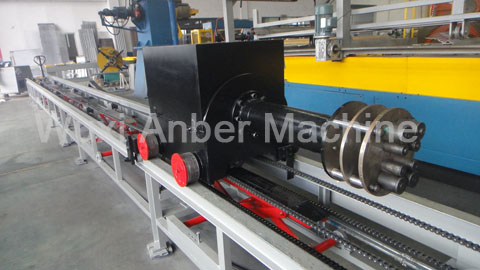

square cage welder

square cage welder

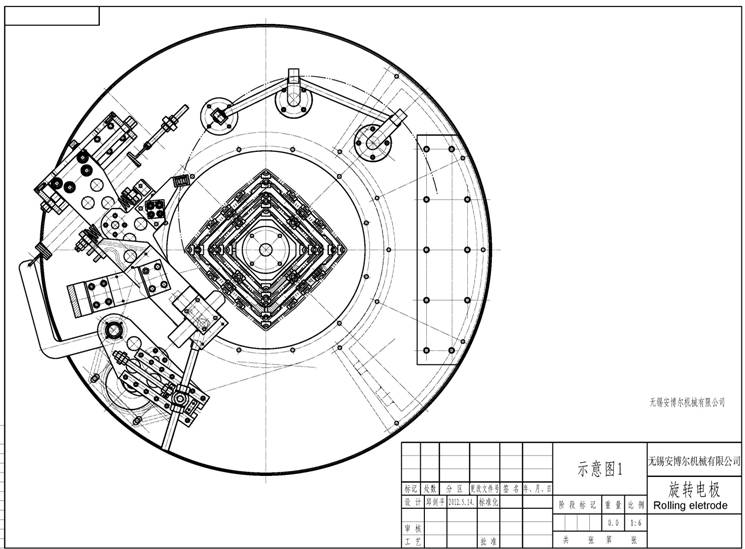

Square cage roll welder

Square cage roll welder

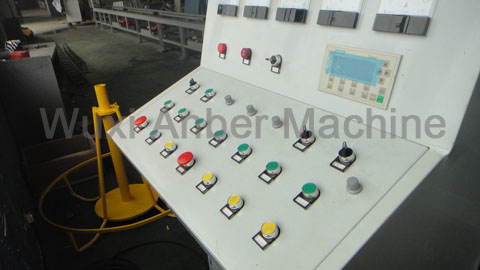

Steel cage making machine

Steel cage making machine

Square wire cage welding machine is a special-purpose welder used to produce the high-strength concrete pipe pile reinforcement cages. The welder is widely applied to reinforcement cage welding by self-stressing and prestressing pretensioning method and post-tensioning method.
1. Small weld strength loss;
2. Adjustable cage pitch and quick forming;
3. High-speed and stable operation and high efficiency;
4. Variable frequency control and high stability and reliability;
5. Rational structure and easy and convenient operation and maintenance.
Square cage welding machine para:
  Square size: 70×70-100×100mm
Cage length: 6m
Line wire dia.: 5-10mm
Stirrups dia.: 3-4mm
Welding speed: 20-30 round per min, can be adjusted
Stirrups pitch: 0-300mm, can be adjusted
Welding transformer capacity: 120KVA
Feeding motor: 0.6kg.m torque motor
Wire rounding motor: 1.5kw
Traction motor (with straightener): 4kw
