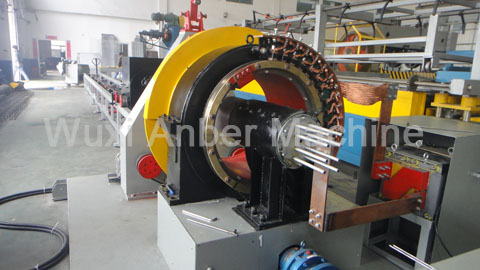

Bore pile cage welding machine

Bore pile cage welding machine

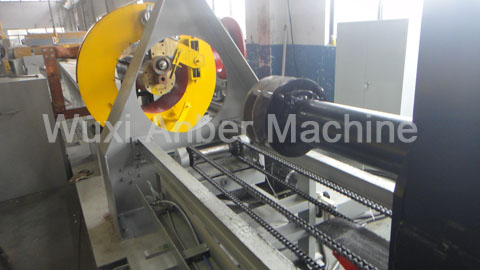

Construction reinforcing square cage welding machine

Construction reinforcing square cage welding machine

Square cage roll welder

Square cage roll welder

Steel cage making machine

Steel cage making machine

  • 01. Introduction of 80 square cage welding machine
  • Square wire cage welding machine is a special-purpose welder used to produce the high-strength concrete pipe pile
    reinforcement cages. The welder is widely applied to reinforcement cage welding by self-stressing and prestressing
    pretensioning method and post-tensioning method.
    1. Small weld strength loss;
    2. Adjustable cage pitch and quick forming;
    3. High-speed and stable operation and high efficiency;
    4. Variable frequency control and high stability and reliability;
    5. Rational structure and easy and convenient operation and maintenance.
  • 02. The main technical indicators
  • The form of welding square cage: 80*80, 90*180
    Welded square cage length: ≤9m
    The number of longitudinal reinforcement: 4
    Longitudinal reinforcement diameter: ⊄5、⊄8
    Ring diameter: ⊄4
    The cage body pitch: 10-150mm adjustable
    Driving power: 9KW
    The welding power: 200KVA
    Main engine rate of revolution:≤30rpm
    The welding way: Resistance welding
    Welding material: Carbon content less than 0.20% of the reinforcement
    Solder joint strength loss: ≤5%
    Solder joint shear force: ≥200kg
    Welding transformer cooling way: self cooling
    Welding electrical source: 380V±5% 50HZ
    The temperature of environment: -5℃ - +35℃
    Relative temperature: <85%
    The total weight of welder: ≈9T
