• SGW12D-1 Stirrup Bender

Stirrup bender

Stirrup bender

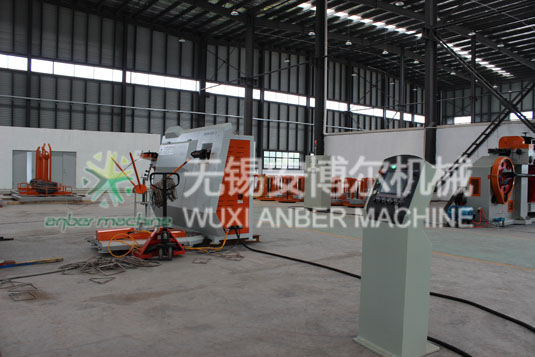

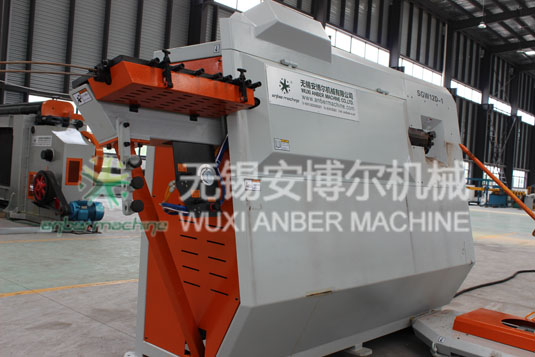

Automatic stirrup bending machine

Automatic stirrup bending machine

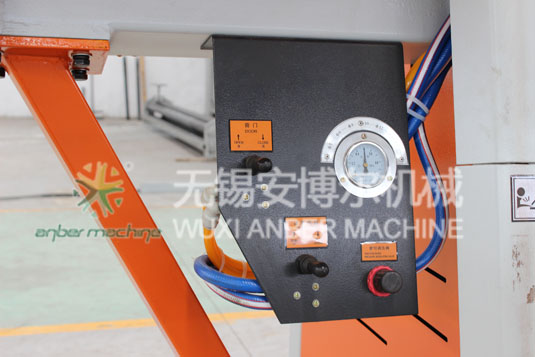

CNC stirrup bender

CNC stirrup bender

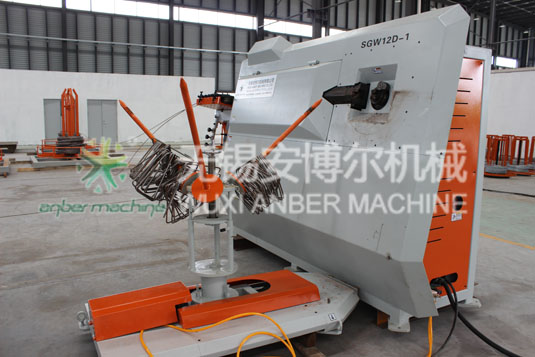

Stirrup bender

Stirrup bender

  • 01. Characteristics
  • Automatic wire feeding system to ensure highly dimensional accuracy;
    Movable air compressor design, to ensure better cooling effect, easy transportation and installation;
    Split, multifuctional blade design (patented) to reduce consumption costs;
    Automatic double wire intake system with more bending shapes to bring high processing efficiency;
    High power servomotor to ensure bending bar accuracy;
    The intelligent fault identification alarm system with more convenient maintenance;
    Aerodynamic design observation door with easy, safe and fast adjustment and maintenance;
    Heavy-duty design line planes, equipped with a brake and buffer device, preventing chaotic lines caused by downtime;
    High degree automation with large storage capacity of 400 prestored processing geometric graphics for instant use ;
    Straightening wheels, hauling wheels and metering wheels made with special steel materials to ensure longer service life and lower operating costs;
    Touch-screen console to ensure easy and fast operation;
    All electrical parts are from Schneider, SIMENS, ABB or OMRON brand to ensure the service life;
    Automatic splicing device with one operator for one machine (optional).
  • 02. Main technical parameters
  • Single wire processing capacity
    φ5—φ13mm
    Deformed steel bar double wire processing capacity
    φ5—φ8mm
    Round bar double wire processing capacity
    φ6—φ10mm
    Max bending angle (°)
    180°
    Longest stirrup edge
    1000mm
    Shortest stirrup edge
    90mm
    Max hauling speed
    75-100 m/min
    Max bending speed
    1050 °/sec
    Total weight
    2.4T
    Shape of Steel bar
    Module library+ personalized edit
    Operating ambient temperature (°)
    -5°～40°
    Length× width× height (L×W×H)
    3800×1000×2000（mm)
    Average electricity consumption
    5KW/h
  • 03. Machine composition
  • Pay-Off; Pre-adjusted assembly; Hauling assembly; Straightening assembly; Observation automatic door; Shear assembly; Bending assembly; Console; Bending arm telescopic cylinder; Bending servomotor; Shear motor; Hauling servomotor; Air compressor; Electric control cabinet
