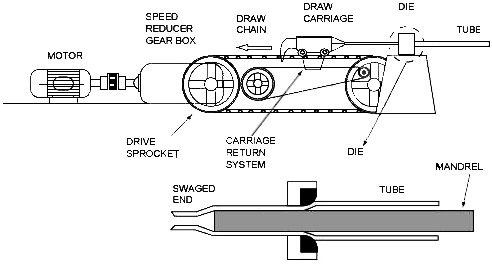

Introduction of Cold Tube(pipe) drawing Bench: |
The full techniques and processes include:
• Drawing machine
• Draw dies and draw die design
• Straightening process controls
• Shot blasting machine for the surface
Profile Wire
Wire rolling is a process in which round wire passes through 4 oiled rolls in a machine which press together and imprint a shape into the wire which is then pulled round a capstan. As the wire passes through the rolls it forces the rolls to turn and imprint the wire throughout the whole cycle of the roll.
|
|
| |
|
Hydraulic Cold Drawing Bench: |
 |
| |
| Model |
LT150 |
LT200 |
LT250 |
LT300 |
LT500 |
| Rated drawing force (N) |
150X103 |
200X103 |
250X103 |
300X103 |
500X103 |
| Drawing speed (m/min) |
12 |
12 |
12 |
12 |
12 |
| Max. drawing length (m) |
3-18 |
3-18 |
3-18 |
3-18 |
3-18 |
| Rated pressure (Mpa) |
25 |
25 |
25 |
25 |
25 |
| Electromotor power (kw) |
300 |
400 |
500 |
600 |
1000 |
|
|
|
Cold Drawing Bench: |
Cold Drawn Bench
Cold Drawing Bench
Rod Drawing Bench
-
Cold Drawn Bench
-
Cold Drawing Bench
-
Rod Drawing Bench
|
| |
| Model |
LT5 |
LT8 |
LT10 |
LT15 |
LT20 |
LT30 |
LT40 |
LT50 |
LT60 |
| Rated drawing force (N) |
50*103 |
80*103 |
100*103 |
150*103 |
200*103 |
300*103 |
400*103 |
600*103 |
600X103 |
| Max. material diameter (mm) |
Ø30 |
Ø32 |
Ø40 |
Ø45 |
Ø45 |
Ø50 |
Ø60 |
Ø80 |
Ø80 |
| Max. level-reducing rate (%) |
20 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
| Drawing speed (m/min) |
10 |
10 |
10 |
9 |
9 |
9 |
9 |
9 |
9 |
| Max. drawing length (m) |
2 |
4 |
6 |
6 |
8 |
8 |
8 |
8 |
10 |
| Returning speed of the vehicle (m/min) |
8 |
8 |
10 |
10 |
10 |
10 |
10 |
10 |
60 |
| Electromotor power (kw) |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
115 |
Electromotor speed
(revolution per minute) |
980 |
980 |
980 |
980 |
980 |
740 |
740 |
740 |
740 |
| Speed reducer type |
JZQ500 |
JZQ500 |
JZQ500 |
JZQ500 |
JZQ500 |
JZQ500 |
JZQ500 |
JZQ500 |
ZS1650 |
| Total weight (kg) |
6000 |
8000 |
11000 |
15000 |
22000 |
31000 |
40000 |
45000 |
45000 |
|
|
| |
